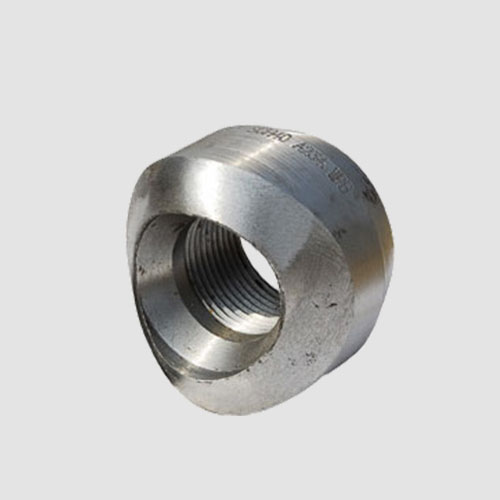

A105 Threadolet
Size | 1/8" (DN6) to 24" (DN100) |
Class | 3000 lb 、6000 lb |
Manufacturing Standards | GB/T19326、HG/T21632、MSS SP 97 accept non-standard custom processing according to drawings |
Material | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, 20#, Q235, 16Mn | |
ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
OLET OF SW & THD
支管公称通径 | 近似重量 kg | 近似体积 m3 | |||||||
DN | NPS | 承插焊 | 螺纹 | 承插焊 | 螺纹 | ||||
3000 | 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | ||
6 | 1/8 | 0.05 | - | 0.05 | - | 0.02*10-3 | - | 0.02*10-3 | - |
8 | 1/4 | 0.05 | - | 0.05 | - | 0.02*10-3 | - | 0.02*10-3 | - |
10 | 3/8 | 0.09 | - | 0.09 | - | 0.02*10-3 | - | 0.02*10-3 | - |
15 | 1/2 | 0.16 | 0.35 | 0.17 | 0.32 | 0.04*10-3 | 0.08*10-3 | 0.04*10-3 | 0.08*10-3 |
20 | 3/4 | 0.20 | 0.47 | 0.22 | 0.47 | 0.07*10-3 | 0.12*10-3 | 0.07*10-3 | 0.12*10-3 |
25 | 1 | 0.42 | 0.68 | 0.43 | 0.65 | 0.11*10-3 | 0.18*10-3 | 0.11*10-3 | 0.18*10-3 |
32 | 1-1/4 | 0.59 | 1.10 | 0.61 | 0.96 | 0.16*10-3 | 0.26*10-3 | 0.16*10-3 | 0.26*10-3 |
40 | 1-1/2 | 0.70 | 1.30 | 0.69 | 1.28 | 0.22*10-3 | 0.35*10-3 | 0.22*10-3 | 0.35*10-3 |
50 | 2 | 1.10 | 2.45 | 1.10 | 2.15 | 0.34*10-3 | 0.62*10-3 | 0.34*10-3 | 0.62*10-3 |
65 | 2-1/2 | 1.40 | - | 1.52 | - | 0.47*10-3 | - | 0.55*10-3 | - |
80 | 3 | 2.30 | - | 2.50 | - | 0.75*10-3 | - | 0.86*10-3 | - |
100 | 4 | 4.20 | - | 4.10 | - | 1.25*10-3 | - | 1.45*10-3 | - |
