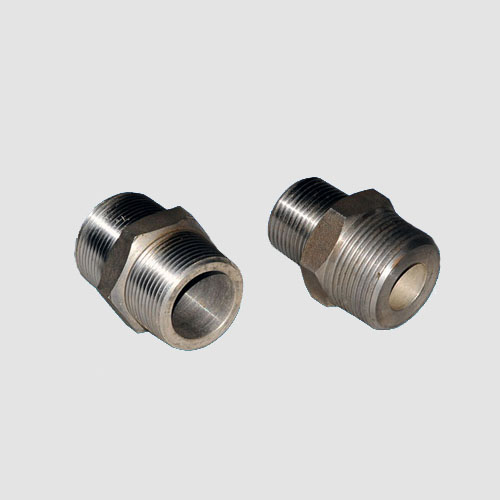

A105 HEXAGONAL NIPPLE
Size | 1/4" (DN8) to 4" (DN100) |
Class | 3000 lb 、6000 lb |
Manufacturing Standards | BS3799 accept non-standard custom processing according to drawings |
Material | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, 20#, Q235, 16Mn | |
ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
Details
HEXAGONAL NIPPLE
主管公称通径 | 近似重量 kg | 近似体积 m3 | ||
DN | NPS | SCH80 | SCH160 | |
6 | 1/8 | 0.02 | 0.02 | 0.005*10-3 |
8 | 1/4 | 0.03 | 0.04 | 0.010*10-3 |
10 | 3/8 | 0.05 | 0.06 | 0.017*10-3 |
15 | 1/2 | 0.10 | 0.12 | 0.032*10-3 |
20 | 3/4 | 0.13 | 0.17 | 0.054*10-3 |
25 | 1 | 0.22 | 0.29 | 0.097*10-3 |
32 | 1-1/4 | 0.34 | 0.41 | 0.160*10-3 |
40 | 1-1/2 | 0.47 | 0.58 | 0.229*10-3 |
50 | 2 | 0.69 | 0.9 | 0.377*10-3 |
65 | 2-1/2 | 1.35 | 1.69 | 0.737*10-3 |
80 | 3 | 2.03 | 2.55 | 1.140*10-3 |
注：表中重量为按变径一档计算的重量，对变径大的重量要重于表中数值。 | ||||
