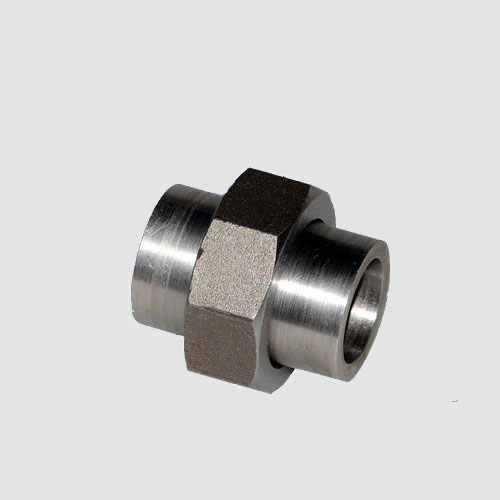

A105 SW UNION
Size | 1/8" (DN6) to 4" (DN100) |
Class | 3000 lb 、6000 lb |
Manufacturing Standards | MSS-SP-83 accept non-standard custom processing according to drawings |
Material | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, 20#, Q235, 16Mn | |
ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
Details
SW UNION
公称通径 | 近似重量 kg | 近似体积 m3 | |
DN | NPS | ||
6 | 1/8 | 0.25 | 0.070*10-3 |
8 | 1/4 | 0.30 | 0.070*10-3 |
10 | 3/8 | 0.35 | 0.098*10-3 |
15 | 1/2 | 0.46 | 0.125*10-3 |
20 | 3/4 | 0.61 | 0.220*10-3 |
25 | 1 | 0.85 | 0.280*10-3 |
